Special Weave Mesh

There Are Several Different types of weave avaialable. The standard weave is a plain weave but also available are

• Twill Weave,
• Plain Dutch Weave
• Twill Dutch Weave
• Reverse Dutch weave.



The differences and what is available of each type are shown below, we do not stock these products hence there is a longer lead time and minimum order quantities are higher.



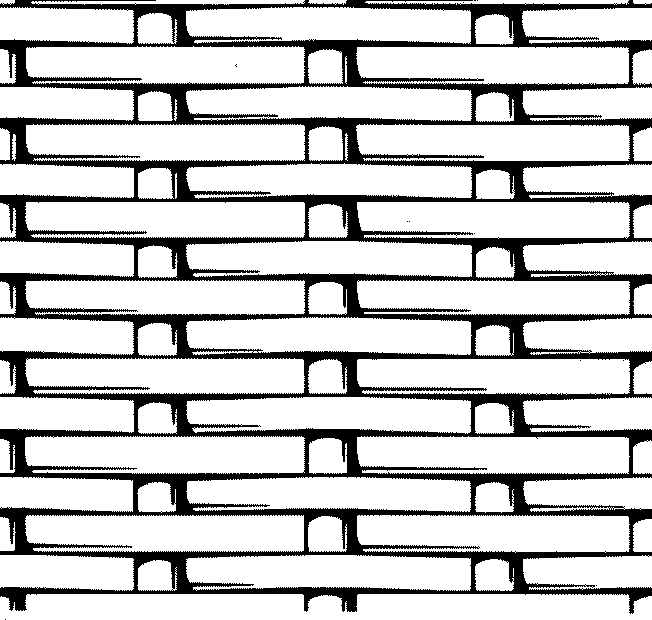

Twill Weave

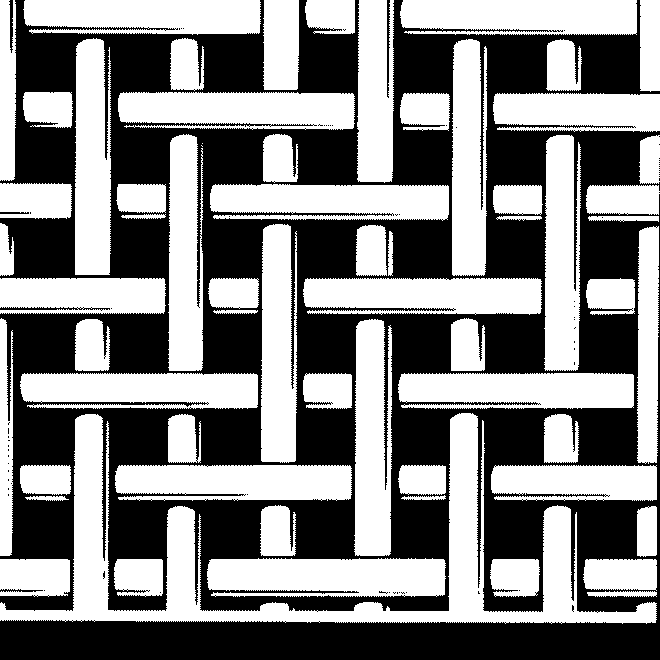

This is frequently used in very fine meshes and it is less rigid than plain weave. Each wire is passed alternatively over two and then under the next two cross wires. By staggering the weave a diagonal pattern is obtained in which heavier wire diameter can be used than would be possible with a plain weave of the the same mesh counts









 Twill Weave Specification

Mesh Count Warp x Weft	Wire Dia mm	Wire Dia inch	Aperture mm	Aperture inch	Micron Rating
100 x 100	0.1250	0.0049	0.1295	0.0051	130
120 x 120	0.0939	0.0037	0.1168	0.0046	117
165 x 165	0.0482	0.0019	0.1041	0.0041	104
200 x 200	0.0584	0.0023	0.0685	0.0027	68
250 x 250	0.0533	0.0021	0.0482	0.0019	48
300 x 300	0.0355	0.0014	0.0482	0.0019	48
300 x 300	0.0400	0.0016	0.0431	0.0017	45
325 x 325	0.0355	0.0014	0.0406	0.0016	41
350 x 350	0.0304	0.0012	0.0431	0.0017	43
400 x 400	0.0304	0.0012	0.0330	0.0013	33
500 x 500	0.0254	0.0010	0.0253	0.0010	25



Twill Dutch Weave

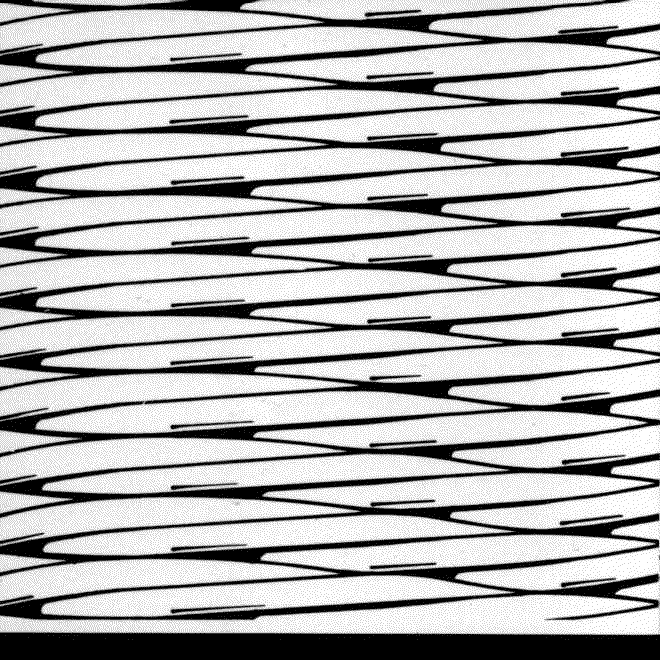

Twill Dutch Weave is also known as Twilled Filter Cloth. Its weave pattern is similar to plain dutch weave but it uses a double layer of weft wires woven as a twill pattern. It is very strong, with a controlled flow rate and is suitable where high pressure filtration is required.











  Twill Dutch Weave Specification

Mesh Count Warp x Weft	Wire Dia mm Warp x Weft	Wire Dia inch Warp x Weft	Micron Rating
20 x 250	0.250 x 0.215	0.0100 x 0.0085	70-90
40 x 400	0.180 x 0.140	0.0071 x 0.0055	90-110
50 x 500	0.140 x 0.114	0.0055 x 0.0045	70-90
50 x 600	0.140 x 0.090	0.0055 x 0.0035	60-70
80 x 700	0.100 x 0.080	0.0040 x 0.0032	45-55
100 x 800	0.100 x 0.070	0.0040 x 0.0028	36-38
120 x 1000	0.080 x 0.053	0.0031 x 0.0021	27-29
165 x 800	0.070 x 0.053	0.0027 x 0.0021	24-26
165 x 1450	0.070 x 0.040	0.0027 x 0.0016	16-18
270 x 2000	0.350 x 0.028	0.0014 x 0.0011	9-10
325 x 2400	0.035 x 0.025	0.0014 x 0.0010	4-5

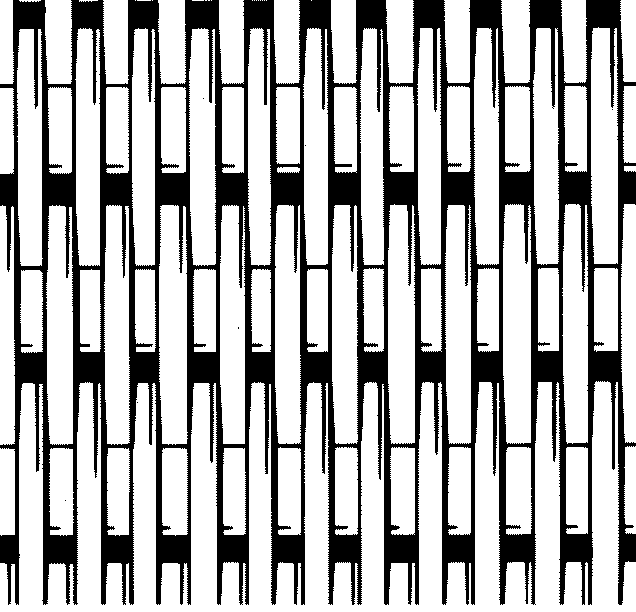

This is woven as a Plain Weave but in the opposite direction to Plain Dutch Weave. The weft wires are of heavier diameter than the warp wires which gives a higher number of warp wires than weft. The resulting mesh is very strong, with a high flow rate which cleans easily.







 Reverse Dutch Weave Specification

Mesh Count Warp x Weft	Wire Dia mm Warp x Weft	Wire Dia inch Warp x Weft	Open Area %	Micron Rating
63 x 18	0.4000 x 0.6000	0.0157 x 0.0236	60	220
107 x 20	0.2400 x 0.6000	0.0094 x 0.0236	58	210
170 x 40	0.2000 x 0.4500	0.0079 x 0.0177	58	130
132 x 32	0.2000 x 0.4000	0.0079 x 0.0157	55	105
171 x 46	0.1500 x 0.3000	0.0059 x 0.0118	54	85
290 x 75	0.0900 x 0.2000	0.0035 x 0.0079	53	55
615 x 102	0.0400 x 0.1600	0.0157 x 0.0063	41	42
615 x 130	0.0400 x 0.1300	0.0157 x 0.0051	49	22
720 x 150	0.0360 x 0.1000	0.0014 x 0.0039	54	17
